Outback Power Systems GVFX3648 Inverter

Outback Logo

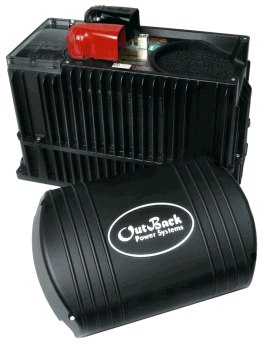

Outback Power Systems Inverter

The OutBack GVFX3648 true sinewave grid-interactive inverter/charger is a complete power solution. It incorporates a DC to AC sinewave inverter, battery charger and AC transfer switch housed within a die-cast aluminum chassis. The GVFX3648 Series Inverter/Chargers give you the ability to sell solar, wind or hydro power back to the utility grid while providing instantaneous backup power in the event of a utility outage.

A built in transfer switch automatically disconnects your loads from the utility grid and powers them from the inverter in the event of an outage, allowing you to continue using your solar and battery back-up power, unlike traditional grid-tie systems. Intelligent multi-stage battery charging prolongs the life of your batteries and built-in networked communications enables you to stack up to two units while simultaneously communicating with other OutBack Power components. The exclusive modular system architecture means that increased power output is just an additional inverter/charger away. The GVFX3648 uses a vented chassis with “bug proof” screened openings that allow high output AC power various operating conditions.

Outback GVFX3648 (vented) Grid-Interactive Inverter Specifications:

Continuous Output Power: 3600 VA
Output Voltage: 120 VAC/60 Hz
DC Input Voltage (Nominal): 48 VDC
Peak Efficiency: 93%
AC Input Current Maximum: 60 amps AC
Continuous DC Charge Rate: 45 amps DC
Frequency Range: 59.3-60.5 Hz
DC Input Voltage Range: 42.0-68.0 VDC
Recommended DC Breaker: Outback 175 amp breaker
Warranty: 2 years (optional 5 year extended warranty)
Weight: 64 lbs

Click Here To Download The Outback Power Systems Grid-Tie Inverters Spec Sheet **
( ** Click to download and save on your computer. PDF format. Adobe Acrobat viewer required for viewing.)

Graphic: Acrobat Logo
